Y7 20’x20′ Custom Printing Package 8
- 6063-T5 Super-strong Heavy Duty 2¼" hexagonal aluminum frame
- 500D Polyster PVC coating, waterproof, CPAI-84 fire retardant, UV protection
- Stainless nuts & bolts, nylon plastic parts
- Aluminum Connectors anti dropping
- Unique push-button lifting & locking system
- No assembly requested, 2 persons open it within 1 minute
- When purchase quantity over 5 ( including 5 ), please click the button "GET A WHOLESALES QUOTE" that on the right side of the page bar to submit your inquiry information. We will give a preferential wholesale price for you.
DESCRIPTIONS
SPECIFICATIONS
DESCRIPTIONS
STANDARD PACKAGE A | 1Roof

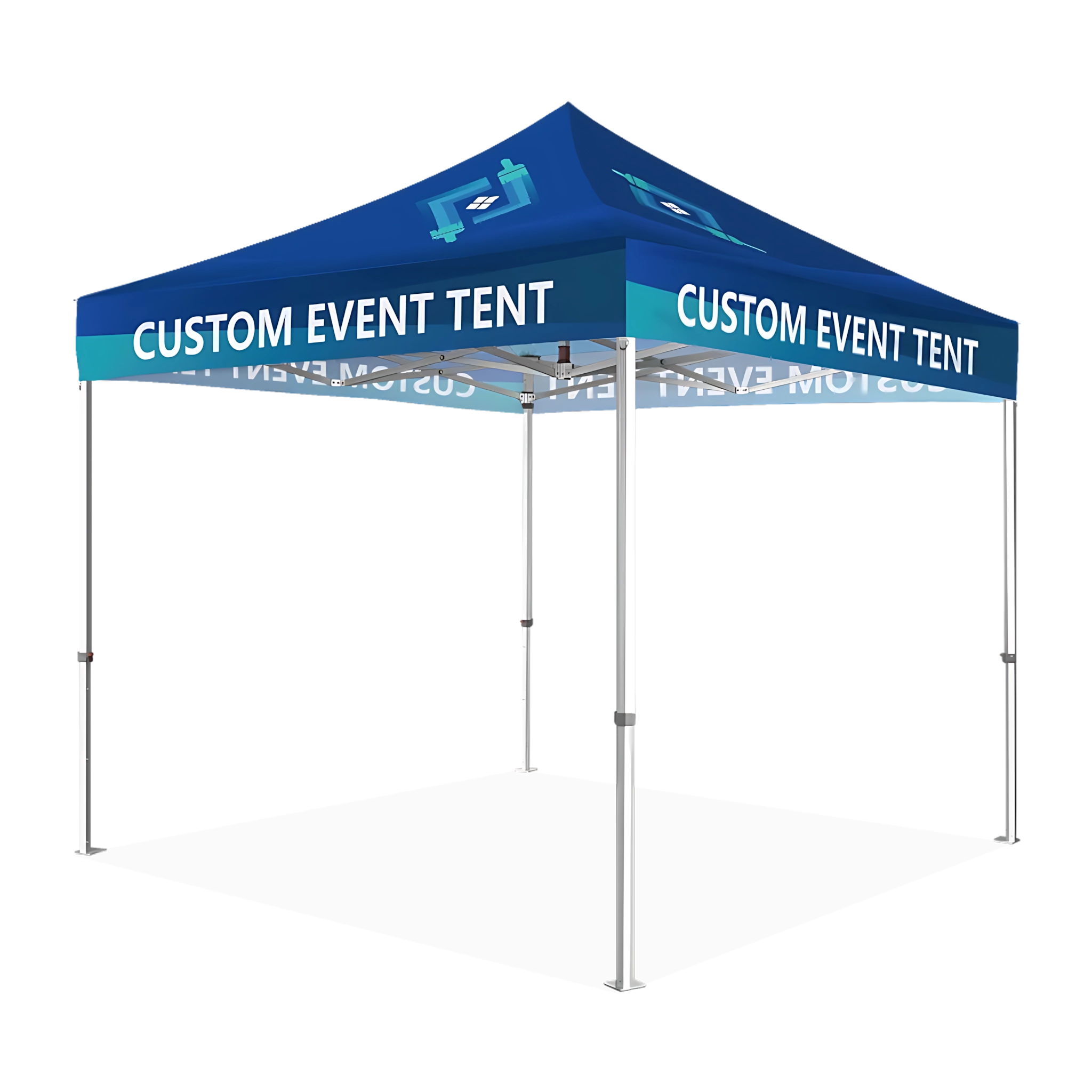

The Y7 series is the most heavy duty pop-up canopy on the market with unchallenged strength and durability. It is perfect for outdoor use where weather conditions require a high level of strength. The 2-1/4″ super heavy duty all aluminum frame has extruded aluminum connectors and metal feet to ensure a long life. This range of branded instant canopies perfect for outdoor events, hiring businesses at job fairs, trade fair exhibitors and wedding venues. Avaible in 8 sizes (10’x10′, 10’x15′, 10’x20′, 13’x13′, 13’x20′, 13’x26′, 16’x16′, 20’x20′) and 6 plain colors (white,black,red,green,yellow,blue). and also,Our custom printing offer a fantastic, cost-effective platform for you to market your brand and products.
NOTICE: If you can’t find a package meeting your needs, please click “Canopy Accessories” to DIY walls.
NOTICE: If you can’t find a package meeting your needs, please click “Canopy Accessories” to DIY walls.
Feature
- Y7 series is the most heavy duty pop-up canopy on the market with unchallenged strength and durability.
- Frame constructed from 6063-T5 high strength aluminum, stainless nuts and bolts, nylon plastic parts, guarantee the structure from every components
- Legs and brackets both are Aluminum, outer leg is hexagonal 2¼” (57mm) with 0.07″ (1.8mm) gauge, truss bar is 1.4″x0.7″x0.07″ (35x17x1.8mm), interal with reinforced rib. Aluminum brackets anti dropping, much stronger than plastic
- Roof and wall made of 500D Polyester with PVC Coating, fully waterproof, fire retardant, UV protection
- All parts are replaceable, simply loose or tight the nuts and bolts to maintain
- No assembly requested, 2 persons open it within 1 minute
Package Include
- Hexagonal 2¼” Aluminum Frame 20’x20′ 1PC
- 500D Polyester PVC Coating Canopy 20’x20′ 1PC
- Pins ¼”x 12” (Φ7x300mm) 13PCS
- Tie Down Straps 4PCS
- Wheeled Protective Cover 1PC
SPECIFICATIONS
| FRAME | |
|---|---|
| Size | 20ft x 20ft ( 6m x 6m ) |
| Material | Aluminum 6063-T5 |
| Outer | Hexagonal 2¼” (57mm), 0.07″ (1.8mm) Thickness |
| Truss Bar | 1.4″x0.7″x0.07″ (35x17x1.8mm), Internal With Reinforced Rib |
| Connector | Aluminum |
| Height Adjuster | Push Button |
| Nuts & Bolts | Stainless Steel |
| Plastic Parts | Nylon |
| Foot Plate | 4″x4″ Zinc Coated Steel |
| ROOF & SIDEWALLS | |
| Fabric | 500D Polyester With PVC Coating, 320gsm |
| Function | Waterproof, CPAI-84 Fire Retardant, UV Protection |
| Reinforcement | All Stress Points |
| Roof connected wall | 2″ (5cm) Velcro |
| Wall connector | #8 Resin Zipper |
| Roof tension | Spring |
| Plain Colors | □■■■■■ |
| MEASUREMENT | |
| Peak Height | 10’10″(3.30m) |
| Height adjustment | 3 positions |
| Clearance Height | 5’2″(158cm) / 6’1″ (187cm) / 6’8″ (203cm) |
| PACKING | |
| Package Longest Box | 69″x24″x24″ (175cm x 62cm x 62cm) |
| Package Weight | 287.3 lbs ( 130.3 kgs ) |
| WARRANTY | |
| Frame | 10 Years |
| Roof | 1 Year |
